Planning throttle Kit.

Anyone installed Motion Pro Revolver 2 Throttle Kit on Gen. 5? On stock and/or aftermarket bars? Kill / start switch? Opinions? Photos?

Thanks.


·
Я - Ребен&#108
2016 ZX10R Race & 2016 ZX10R Street
Joined
·
3,683 Posts
I put one on mines almost as soon as I got it.

I love them, and put them on most of my zx10Rs

  • Like
Reactions: FI-saki

·
Registered
Joined
·
215 Posts
I have it on my gen4. Fucking love it. Was hoping to put a kit on my zx14r but they dont make a kit for that bike. Said i would have to send the cables to them so they can fav something up.


Attachments

·
Registered
Joined
·
248 Posts
What are the benefits of these guys? Increase smoothness? 1/4 turn throttle? Just curious. Haven't heard of them before but I have a gen 5 and will have to pick one up if it's worth it.

Sent from my SAMSUNG-SM-G928A using Tapatalk


·
Registered
Joined
·
171 Posts
Main reason is quicker turn throttle, they come with various size reels so you can progressively decrease the required turn (helps prevent an accidental whisky throttle). I put one on my race bikes, mine just was installed on the ZX but I haven't been up to see the bike since it's been put on, so no pics but can get some next week when I'm up there.


·
Registered
Joined
·
215 Posts
Like honey badger said, reduces the amount of twist. Doesnt go by 1/4 measurements. Comes with 5 different reels that can be swapped out within a couple mins. 3 different size ones measured in various degrees and 2 progressive ones. Start out nice and easy but as you turn the throttle more, becomes more aggressive. The only thing i hate about it is the housing. I have one on my zx10r and zx6r and both housings hand a 90* where the cable goes into. Making it a bitch to route the cables to the originial location. The oem housing is more like a 70-80* bend. The brake reservior gets in the way.


·
Я - Ребен&#108
2016 ZX10R Race & 2016 ZX10R Street
Joined
·
3,683 Posts
Its cables to the sensor...then from that point its electronically controlling everything else...yamaha R1 and R6 the same.

Here are pictures. and a rifleman to compare to.


Attachments

·
Registered
Joined
·
54 Posts
Discussion Starter #13
Thanks for photos and info. Installation looks pretty straightforward as per photos. Any tricks needed?


·
Я - Ребен&#108
2016 ZX10R Race & 2016 ZX10R Street
Joined
·
3,683 Posts
Thanx for that. helps out a lot, how do you like it overall which reel did you decide to use?
Thanks for photos and info. Installation looks pretty straightforward as per photos. Any tricks needed?
This is my 3rd one....I like it over stock because it feels solid/smoother, but not by much, but more than that I like adjusting the throttle controls along with changing gearing.

On average I use the 45mm or 50mm, depending on my gearing. Since I am stock right now I use the Orange 50mm. when I change up my gearing I might drop down to a 45mm.

The biggest trick is to take it all down and stop at the throttle bodies in the pics. From that point it will be sort of easy.

Have a few different size needle noses on hand.
Might have to bend the clip that holds the cables down to the sensor...and bend back tight after removal.

but Def have a MAGNET rod to get the clamp if you drop it LOL...trust me this can make your day go so south fast.

Other than that a long skinny head flat head screw driver helps also.

If they did not cost so much Id put one on every single bike to taylor your throttle control. Stock is one of the best, but this still a tad bit smoother.

I have them on stock and after market bars...after market bars are a little more difficult to fit tight, but the Revolver 2 is narrower now so its much better.

PS: i put the yellow zip tie on one of the cables (Either pull or return) so that it will be easier putting on and not mixing up.


·
Я - Ребен&#108
2016 ZX10R Race & 2016 ZX10R Street
Joined
·
3,683 Posts
Also the Riffleman clip ($25) is 45mm


·
Registered
Joined
·
33 Posts
I did the throttle kit install and I bent the clip that holds the throttle cables to the sensor. I spent some time bending it back but it just didn't want to go back to the way it was originally no matter how hard I tried. I'd rather just get a new one at this point; however, I combed the Kawasaki microfiche online and just can't seem to find it anywhere. Anyone have any idea what the part number on that little bugger is or what part diagram to look under?


·
Registered
Joined
·
33 Posts
FYI, the throttle line clip is not available on it's own. You have to buy the whole throttle body assembly to get one from Kawi so be careful with the clip. I fixed mine best I could since I'm not paying hundreds just to get a clip...

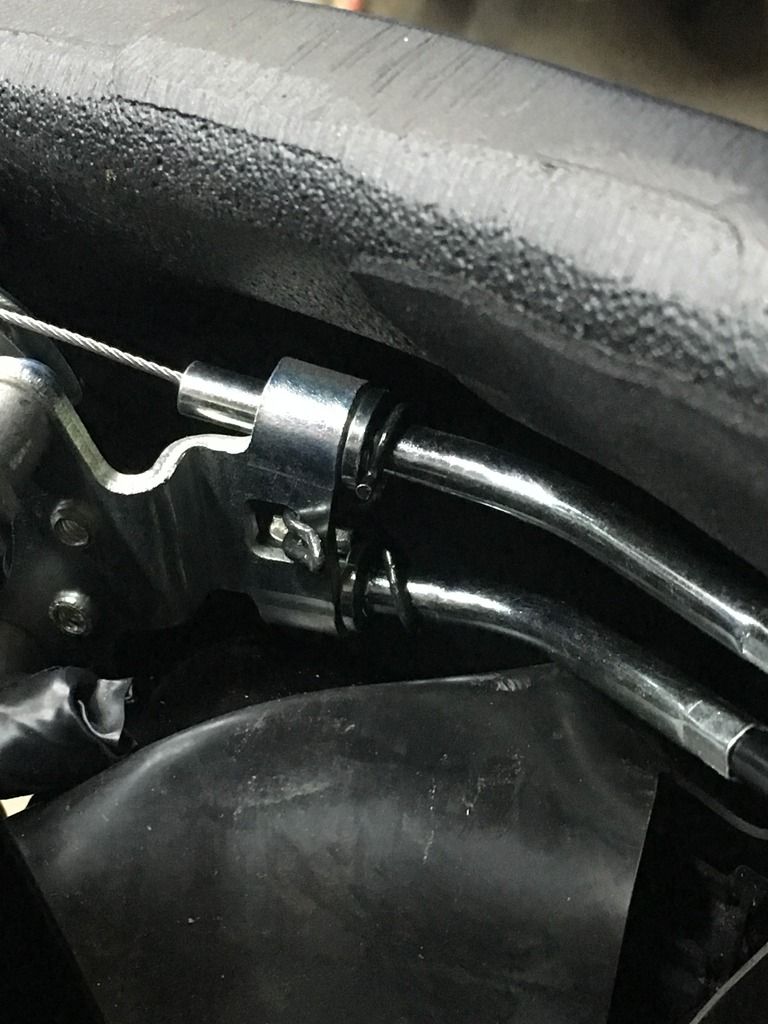

This is what mine looked like when I reinstalled it:




Sent from my iPhone using Tapatalk


·
Я - Ребен&#108
2016 ZX10R Race & 2016 ZX10R Street
Joined
·
3,683 Posts
Is this kit the same as Gen4? I see part numbers are different but I'm struggling to see how it's actually different.
No not the same.

To tell the truth I have one of the earlier ones for Gen 5...like one of the first 20 made.
When I talk to the owner I ask him if I can just order a Gen 4. He said they were different just enough.

I had to wait about 2 weeks for him to get more parts in to build them.

I have a feeling a Gen 4 might work...just not as much cable slack.... id be surprised if there was more than 1.5 inchs difference.
