In the interest of expanding the how-to section of the forum I put together a photo illustrated step by step on how to change your own oil. This will be elementary for some, but I'm sure there are some visitors to the site that could use the info.

First of all... BIG DADDY... Don't try to move this one please! :mrgreen:

Ok, on with the how-to...

Let's start with the first rule of mechanics. You've gotta have tunes. Nothing will go right unless you've got one of your favorite CD's or a favorite radio station playin' in the background. :thumbsup: Since I wanted things to go smoothly I fired up the little Sony stereo I keep in the Garage and got some classic rock playin'... Wrenchin' and rock & roll... GOOD TIMES! :eek:ccasion1






The second most important thing for an oil change, after tunes of course, is new oil, and a new filter if you're changing it, too. I've got just under 2,000 miles on my 10 now so I decided I'd go ahead and go synthetic this time. After some reading and research I decided to go with a full ester synthetic. I've got a busa bro that swears by Silkolene so I decided to give it a try. The Kawasaki service manual calls for 3.0 litres (3.2 quarts) when the filter is changed. Here are my three litres of Silkolene PRO 4 PLUS 10W-50, Kawasaki oil filter (part# 16097-0002), and an oil filter "socket" with a 3/8" drive to remove the old filter and torque the new one.

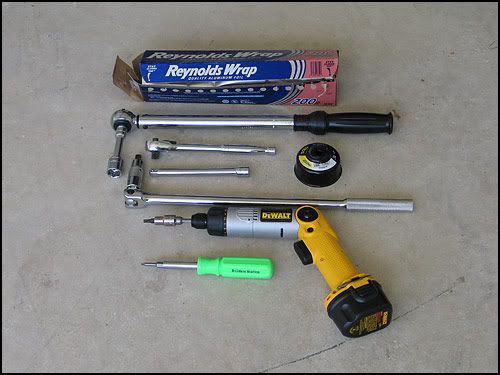

And now a photo and list of the tools I used for the oil change...








  • Flat blade screw driver for removing push clips in lower fairing
  • 4mm allen socket for removing lower fairing fasteners
  • Dewalt Cordless Driver (optional, but SCHWEET!) for removing lower fairing fasteners
  • 3/8" drive bit for Cordless Driver
  • Oil Filter Cap Wrench with 3/8" drive (I used an "OEM Industrial" brand, part #25404 from Advanced Auto Parts. Size "F"...)
  • 1/2" drive breaker bar and 1/2" to 3/8" step down adaptor
  • 3/8" drive ratchet w/various length extensions
  • 3/8" drive torque wrench for torquing filter and oil drain plug
  • 17mm socket for drain plug bolt
  • Aluminum foil... explained later in process

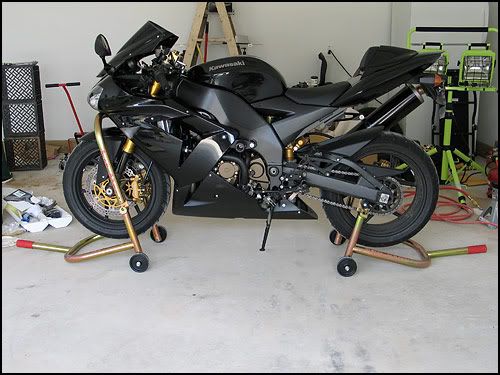

Before I change the oil in any of my vehicles/toys I always start the engine and let it reach operating temperature to warm the used oil so it thins out and drains better. After rollin' Diablo out to the driveway and lettin' 'er warm up I got 'er up on the Pit Bulls. These stands are worth their weight in gold when you're wrenchin' on your bike. Just about the only thing I do to my bike without it on the stands is RIDE it. :mrgreen:






The only body part that technically has to come off to do the oil change is the left (shifter pedal) side lower. I take both lowers off but it can be done with only the left one removed.






Use a 17mm socket and a ratchet or breaker bar to loosen the oil drain plug bolt.

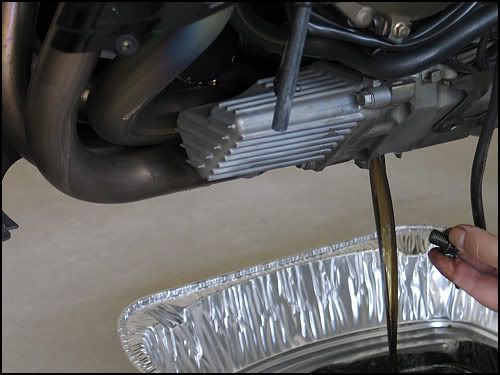

Once the plug is loose I like to back it out by hand. I keep upward pressure on it and turn it until I feel it "click" when it is all the way out of the threads. Then I quickly snatch the bolt down and away to avoid a stream of HOT oil on my hand. Here's the old stuff coming out. I catch it in a big aluminum foil basting pan that I get at the grocery store. I put it onto plastic jugs later and dispose of it at a friend's garage with his waste oil. I need to buy one of those re-useable plastic oil catch thingies but I never think about it until I'm ready to pull the plug bolt. :dontknow:



Note: The washer may stick to the oil pan instead of coming off with the bolt. Mine stuck to the pan long enough for me to pull the bolt away, then fell into the pan of waste oil. Just make sure you hang on to it wherever it goes unless you've got a new one to replace it with.

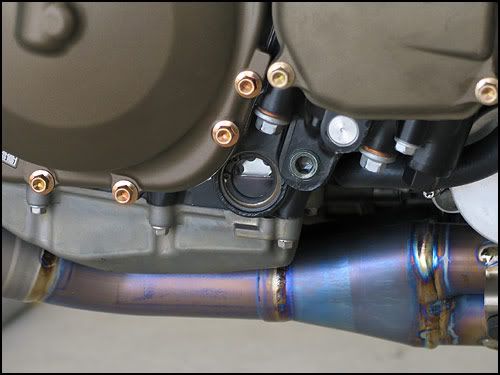

Here is where the aluminum foil comes into play. The 10R's oil filter is directly above the header pipes. This trick keeps oil off those beautiful titanium header tubes. Pull approximately 18 inches of foil off the roll and tear it off. Fold approximately 6" of it toward the center of the piece, then fold the other end (approx. 6") toward the center leaving you with a three ply, approx. 6' wide stack of foil. Here's a three pic series to illustrate how to fold it.






Take the folded foil and slide it between the oil filter/base and wrap it around the header pipes. Once it's in there bend the sides up slightly to keep oil from running off the sides and onto the head pipes. Here's a pic with the foil in place. Works great and eliminates that burning oil smell after the oil change.






Put the oil filter wrench/"socket" onto the oil filter and tap it gently into place to make sure it's seated on the filter. I used the end of the breaker bar to tap it on. Then use some extensions (or one if you have one long enough to reach it) and the breaker bar to loosen and remove the filter.






Let the oil drain out of the filter base until it quits dripping. While it's draining you can get the new filter ready by applying a light coating of the new oil to the rubber o-ring that seals the filter to the base. Once the filter base has quit dripping start the new filter by hand and spin it on until it just makes contact with the base. Then tap the filter wrench onto the new filter and use the extensions with a torque wrench to torque the filter to 23 ft-lbs per the service manual.






By this time the oil pan drain plug should be done dripping, too. Make sure the washer is on the plug bolt and start the bolt by hand. Run it in by hand until it contacts the oil pan and then torque it to the service manual specified 14 ft-lbs.






Time for the new blood. Remove the oil fill cap on the clutch cover on the throttle side, get a funnel (long thin one works well to reach the fill hole on the 10R), and just start pouring.






Per the service manual I put three full litres of oil in. I then started the bike up watching the "oil warning light" beside the speedometer to make sure it went off within a few seconds. My warning light went off within like 5 seconds. I let it run for a couple minutes to let the oil fully circulate throughout the engine, fill the new filter, and all oil lines, then shut it off to check the oil. Give the oil a few minutes to fully drain back into the pan. Get the bike perpendicular to the ground (level) by either holding it straight up, or having it on stands and check the oil level. There are marks beside the oil level viewing window. Make sure the oil is between the marks. Three full litres put mine just about dead center between the marks after the oil had time to drain back down. Perfect! :thumbsup:





After you've ran the engine and checked the oil, check around the filter and drain plug bolt for any leaks. If there are no leaks it's time to put the lower(s) back on and get a cold drink. :beer: If you're not going to ride, this is a decent choice. :mrgreen:



·
PostWhore
Joined
·
13,496 Posts
As usual, another great how-to post.....may be elementary to some, but everyone can learn something...i love the foil tip.....never thought of that, and rags dont work worth a shit, always end up having to burn some off....also, great note on the washer....mine fell in the pan 1st time i changed the oil, so i had to get unnecessarily dirty because of it......great job:thumbsup:


·
Registered
Joined
·
34,537 Posts
Hmmmmmmmmm what should i do now?? uhhhhhhhhh OK no Mod tricks. :mrgreen: And yet another in a looooooooong line of quality detailed 'how to's by El Diablo.

BD


·
Registered
Joined
·
5,179 Posts
Discussion Starter #4
BadAzzGuitarPlyr said:
As usual, another great how-to post.....may be elementary to some, but everyone can learn something...i love the foil tip.....never thought of that, and rags dont work worth a shit, always end up having to burn some off....also, great note on the washer....mine fell in the pan 1st time i changed the oil, so i had to get unnecessarily dirty because of it......great job:thumbsup:

Yeah, I learned the foil trick on the busa board back when I done my first oil change on the busa. It's a good one. :thumbsup:


·
Registered
Joined
·
5,179 Posts
Discussion Starter #5
Big Daddy said:
Hmmmmmmmmm what should i do now?? uhhhhhhhhh OK no Mod tricks. :mrgreen: And yet another in a looooooooong line of quality detailed 'how to's by El Diablo.

BD

No moderator tricks there bro. Just let the "professionals" handle this one. :crackup:


·
Registered
Joined
·
34,537 Posts
fugger. :sad: yeah i too use the foil trick. :thumbsup:


My hope is the one can be repaired in some way so that you wouldn't have to start from square one but if not i suspect you have the pics anyway.

BD


·
PostWhore
Joined
·
13,496 Posts
btw...my bikes nearing the 7500 mile service, so im thinking...if you wanna use it as a follow-up how to, you're more than welcome....:wink:


·
Registered
Joined
·
2,386 Posts
El Diablo - Great write up

One thing I dont understand. I have had my oil changed about 3 times already.

My mechanic never takes the lower off.

Yet looking at the filter location from the pics it would look like he would have to.

Is there a way to change the filter without the removal of the lower?


·
Supercharged Mod
Joined
·
4,392 Posts
It is possible to get the oil filter off by reaching in from the front. I've done it. It helps if you have a ratchet with a flex-jointed end, or you might have to grab the hex on the oil filter using an open-end wrench.

Also, it has been found that the ZX10R oil pump is prone to losing its prime if left to drain for too long. I'd suggest changing the filter and installing the new one, then draining the oil and putting in the new oil while spending as little time waiting for it to drain as possible ... have the filler cap already off, undo the drain plug, then stick it back in as soon as the bulk of the oil is drained and fill the new oil in straight away, don't wait for every last drop because that's the oil pump losing its prime ...


·
Registered
Joined
·
5,179 Posts
Discussion Starter #11
Big Daddy said:
fugger. :sad: yeah i too use the foil trick. :thumbsup:


My hope is the one can be repaired in some way so that you wouldn't have to start from square one but if not i suspect you have the pics anyway.

BD

I've PM'd YSR50 to see if he can fix it. I do still have the pics. I'll just have to "make up" the instructions. :mrgreen:


·
Registered
Joined
·
5,179 Posts
Discussion Starter #12
BadAzzGuitarPlyr said:
btw...my bikes nearing the 7500 mile service, so im thinking...if you wanna use it as a follow-up how to, you're more than welcome....:wink:

Hmmm... Where in Georgia do you live again? :mrgreen:


·
PostWhore
Joined
·
13,496 Posts
doesnt matter...ill bring it to you :thumbsup:


·
Registered
Joined
·
5,179 Posts
Discussion Starter #14
crispin said:
El Diablo - Great write up

One thing I dont understand. I have had my oil changed about 3 times already.

My mechanic never takes the lower off.

Yet looking at the filter location from the pics it would look like he would have to.

Is there a way to change the filter without the removal of the lower?

Thanks. I think the filter could be changed out without completely removing the lowers, but I think I'd at least take them loose at the bottom and swing them out a little. Maybe leave in the two screws that hold the lower to the mid fairings... I prefer to remove the lowers though, so I can get in there and use the foil trick. :wink:


·
OG Post Whore
Joined
·
10,400 Posts
ill ship mine to you


·
Registered
Joined
·
5,179 Posts
Discussion Starter #16
NWZX10 said:
Excellent How To!

Better beer is needed though.

:crackup: So, what kind did I need? I'm trying to lose some more weight (lost 50 lbs already) so I'm suffering through the lite stuff. :dontknow:


·
Registered
Joined
·
5,179 Posts
Discussion Starter #17
GoFaster said:
It is possible to get the oil filter off by reaching in from the front. I've done it. It helps if you have a ratchet with a flex-jointed end, or you might have to grab the hex on the oil filter using an open-end wrench.

Also, it has been found that the ZX10R oil pump is prone to losing its prime if left to drain for too long. I'd suggest changing the filter and installing the new one, then draining the oil and putting in the new oil while spending as little time waiting for it to drain as possible ... have the filler cap already off, undo the drain plug, then stick it back in as soon as the bulk of the oil is drained and fill the new oil in straight away, don't wait for every last drop because that's the oil pump losing its prime ...

So what if it loses it's prime? It picks up in a few seconds anyway, and by running it to heat it up before changing the oil, the bearing races still have an oil coating on them to cover the re-start after the change. I don't see the need to avoid this as long as it picks back up quickly. I don't like the idea of contaminating new, fresh oil with any more of the old, corrosive stuff than I have to... If I could wash the motor out I would. :dontknow:


·
Registered
Joined
·
5,179 Posts
Discussion Starter #18
BadAzzGuitarPlyr said:
doesnt matter...ill bring it to you :thumbsup:
:mrgreen:


·
Registered
Joined
·
5,179 Posts
Discussion Starter #19
stunnerific_harry said:
ill ship mine to you

Now THAT would be an expensive oil change! Shippin' a 10 from Sandy Eggo to Jawja... wooooooooooo! :spit:
